For modern appliance manufacturers, oven door glass is no longer a simple structural barrier. It operates as a critical intersection of thermal engineering, user safety, and brand aesthetics. Today's smart appliances require highly specialized components to function correctly. Sourcing multi-layered, functionally distinct glass parts from fragmented suppliers introduces massive supply chain friction. You risk severe tolerance inconsistencies and compliance failures when handling inner, outer, and control panels through separate vendors.
A consolidated, one-stop B2B manufacturing approach solves these systemic issues. It ensures exact dimensional tolerances across all components. A unified partner guarantees consistent high-temperature performance and significantly streamlines your assembly lines. This comprehensive guide outlines the technical criteria and evaluation frameworks you need for specifying specialized oven glass. We explore how advanced fabrication methods solve modern appliance engineering challenges, allowing you to build safer, more efficient ovens.
Zonal Engineering: Optimal oven design requires distinct glass properties based on placement—High Temperature Glass with Low-E coatings for inner layers, and Custom Printed or Mirror Coated Glass for exteriors.
Precision Tolerances: Reliable integration into multi-panel oven doors requires strict thickness controls (e.g., ±0.2mm) and advanced CNC edge processing.
Safety & Compliance: Viable OEM partners must validate their products against IEC appliance standards, RoHS compliance, and rigorous mechanical tests (e.g., >60 fragment counts per 50x50mm area).
Vendor Consolidation: Partnering with a single-source fabricator capable of laser drilling, applying ceramic inks, and fragmented tempering reduces lead times and mitigates assembly failures.
Appliance designers constantly face competing structural demands. The oven cavity must retain extreme heat to maximize energy efficiency. This retained heat also enables necessary pyrolytic self-cleaning functions, which often push internal temperatures above 500°C. Simultaneously, the exterior surface must remain entirely safe to the human touch. We refer to this conflicting requirement as the dual insulation model.
To achieve this safety standard, manufacturers rely on multi-layer setups. Most premium ovens integrate up to three separate glass panels inside a single door. This creates insulated air gaps between the layers, actively reducing heat transfer. However, extreme material limitations exist. Standard tempered glass degrades under sustained thermal stress. Repeated extreme heat cycles cause rapid structural failure. Therefore, you need highly refined tempering processes. Specialized base materials become absolutely necessary. Float-based glass treated specifically for thermal shock performs well. For more extreme industrial or pyrolytic applications, borosilicate glass offers vastly superior thermal resistance and longevity.
Understanding the spatial architecture of an oven door dictates your material choices. Each zone requires specific thermal and aesthetic properties.
Optimal heat retention starts at the heat source. For inner cavity doors, manufacturers rely heavily on High Temperature Glass engineered to withstand 250℃–300℃ standard operating temperatures. Untreated glass fails quickly in this environment. You must apply Low-E (Low Emissivity) coatings to achieve high energy ratings. FTO (Fluorine-doped Tin Oxide) or ITO (Indium Tin Oxide) coatings actively reflect radiant heat back into the oven cavity. This drastically improves energy efficiency while preventing excess heat from escaping into the kitchen. Furthermore, inner layers require a specialized "fragmented tempering" process. This precise manufacturing technique significantly enhances the thermal performance of the glass closest to the heating elements.

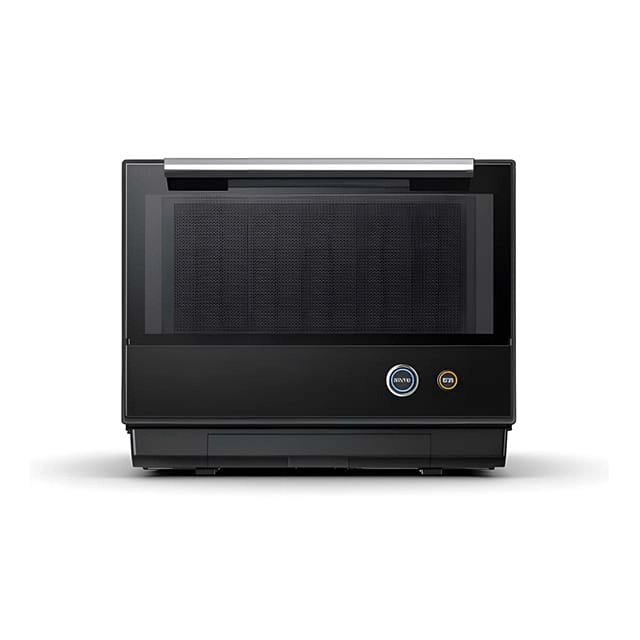

The exterior door serves a fundamentally different purpose. Here, we focus on Mirror Coated Glass and high-clarity tempered panels. Consumers want to monitor their baking progress without opening the door. Opening the door causes massive heat loss and ruins temperature stability. High-clarity exterior glass solves this usability problem. It combines excellent visibility with low-maintenance, scratch-resistant exterior surfaces. When the oven light is off, mirror coatings conceal the internal cavity, presenting a sleek, modern aesthetic.

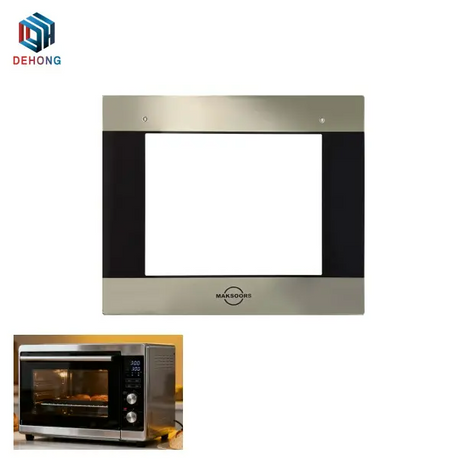

Modern ovens rely heavily on electronic touch interfaces and digital displays. This shift requires sophisticated Custom Printed Glass solutions. Top-tier manufacturers utilize high-resolution, multi-color silk-screen printing. This advanced process embeds brand logos and interface symbols seamlessly into the glass surface. The printed panel must integrate perfectly with sensitive capacitive touch sensors behind it. Precision printing ensures both a beautiful aesthetic and highly reliable user interaction.
Oven Component | Primary Function | Recommended Glass Type | Key Coating / Processing |
|---|---|---|---|
Inner Cavity Door | Maximum Thermal Retention | Borosilicate / High-Temp Tempered | Low-E (FTO/ITO), Fragmented Tempering |
Outer Door Window | Visibility & User Safety | High-Clarity Tempered | Mirror Coating, Anti-Scratch Treatment |
Top Control Panel | Touch Interface & Branding | Specialized Float Glass (3-6mm) | High-Temp Ceramic Silk-Screen Printing |
Sourcing exceptional glass requires strict adherence to technical performance metrics. You cannot leave fabrication tolerances to chance.
Multi-layer doors require extremely strict dimensional sizing. Poor tolerances cause thermal leakage. They also induce dangerous mechanical stress during factory appliance assembly. Standard industry thicknesses usually sit at 3.2mm or 4mm. Manufacturers must hold strict dimensional tolerances of ±0.2mm to ensure perfect fitment. Achieving this demands highly advanced fabrication machinery. Reliable B2B partners use precision laser drilling for handle mounts. They utilize CNC round edging and complex cut-angle modifications. These precise processes ensure perfect structural alignment across multi-panel assemblies.
Interface inks must withstand aggressive chemical cleaners and constant heat exposure. Subpar inks quickly peel, scratch, or fade. To prevent this brand degradation, manufacturers utilize high-temperature ceramic inks. These specialized inks fuse directly into the glass during tempering, resisting temperatures up to 700°C. You must actively validate printing durability through standardized testing.
Common validation methods include:
Cross-Cut Adhesion Test: Evaluates the initial bonding strength of the ink.
Aggressive Tape Test: Simulates repeated user cleaning and friction.
Chemical Solvent Exposure: Confirms resistance to heavy-duty kitchen degreasers.
Glass safety remains entirely non-negotiable for consumer appliances. Blunt-angle fragmentation acts as a mandatory requirement upon critical impact. Suppliers must routinely pass the falling steel ball test. The resulting fragmentation count must rigorously exceed 60 pieces within a standard 50x50mm area. This high density of blunt fragments ensures absolute end-user safety. It prevents dangerous, sharp shards from causing severe lacerations during accidental breakage.
Local certifications rarely suffice for global OEM distribution. International markets demand unified regulatory compliance. Evaluating manufacturer authority requires looking at globally recognized safety frameworks.
First, you need ISO9001 certification. This establishes a baseline for strict factory quality management and batch consistency. Alongside this, materials must meet strict RoHS and REACH standards. This guarantees lead-free, environmentally compliant material usage across all your production lines. Using non-compliant materials restricts your ability to sell appliances in major European and North American markets.
Furthermore, the glass must tightly align with established electrical and safety standards. IEC safety requirements are paramount for modern smart ovens. They ensure the glass behaves predictably when integrated directly with electronic control panels. The glass substrate must remain electrically stable when positioned near high-voltage heating elements and sensitive capacitive touch sensors.
Managing separate vendors creates massive logistical headaches for procurement teams. Handling raw glass cutting, Low-E coating, and ceramic printing through different suppliers exponentially increases your risk of component mismatch. This fragmentation causes severe delays during Oven Door Replacement programs or new product rollouts. A single-source partner eliminates these unnecessary friction points.
A highly capable B2B partner offers true "design-to-delivery" capabilities. They should fully support reverse engineering. This proves critical when matching legacy parts for warranty repairs. You also need precise custom Pantone or RAL color matching to maintain brand identity. Rapid prototyping represents another vital capability. It allows your engineering teams to conduct small-batch testing before entering mass production.
Single-source accountability delivers clear operational advantages:
Defect Rate Reduction: One factory oversees the entire quality control process.
Assembly Line Consistency: Perfectly matched multi-layer panels prevent factory bottlenecks.
Logistical Reliability: Consolidated shipping guarantees scheduled global delivery.
Rapid Iteration: Design changes pass immediately from prototyping to full manufacturing.
Sourcing oven door glass functions primarily as an exercise in rigorous risk management. Balancing the extreme thermal demands of Low-E inner glass with the aesthetic precision of custom-printed control panels requires immense expertise. You need an advanced, vertically integrated manufacturer capable of executing tight tolerances and high-temperature printing simultaneously. Consolidating your supply chain under one roof ensures consistent safety compliance and assembly-line efficiency.
We encourage procurement teams and product engineers to take immediate action. Request detailed technical datasheets from your prospective suppliers. Order sample prototypes to conduct independent tape and impact testing in your own labs. Schedule a technical consultation today to discuss your specific custom specifications, dimensional tolerances, and volume pricing requirements.
A: No, provided the manufacturer utilizes high-temperature ceramic or UV inks engineered for thermal resistance (up to 700°C), validated by cross-cut adhesion tests.
A: Industry standards typically utilize 3.2mm (1/8") or 4mm (5/32") tempered glass, with specialized control panels sometimes ranging up to 6mm depending on structural requirements.
A: Yes. Reliable one-stop manufacturers allow for test orders and custom sampling to ensure exact fitment, color matching, and thermal performance validation prior to committing to mass volume.
